LS2-155 : Universal Dryer Cycling Thermostat, 155°F
Compare at: $ 27.45
You Save: $ 2.50
SHIPS: IMMEDIATELY

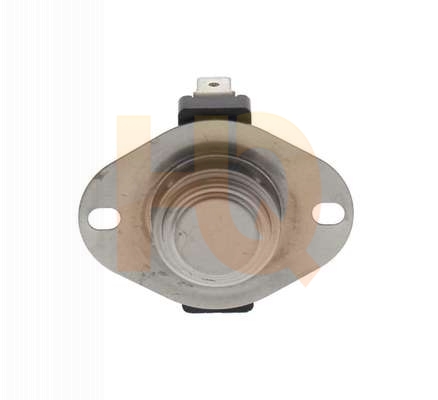

Supco Universal L155 LS2-155 Dryer Cycling Thermostat. The L Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. The cycling thermostat monitors and regulates the temperature inside the dryer.
Differential: 20°
Open (°F): 155°
Close (°F): 135°
Amperage (Full Load) @ 120VAC: 14A
Amperage (Full Load) @ 240VAC: 10A
Amperage (Locked Rotor) @ 120VAC: 72A
Amperage (Locked Rotor) @ 240VAC: 60A
Pilot Duty @ 120VAC / 240VAC: 125 VA
Amperage (Resistive) @ 120VAC / 240VAC: 25A
Possible Repair Solution For:
Not drying properly, will not start, no heat, not enough heat, too hot, drying ends too soon.
Please Note: This is intended as a guideline only, as other items can cause the same symptoms.
This part is also known as an operating thermostat, L155-20F.
| Product Specifications | |
|---|---|
| Skill Level: |  |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 193953, 20010046, 299008, 301007, 341199, 348895, 510813, 61329, 62208, 63-4573, AP4502889, B4595, ERL155, L155, L155-2, TJ90L155, WE4M71, WE4M79, WE4X154
