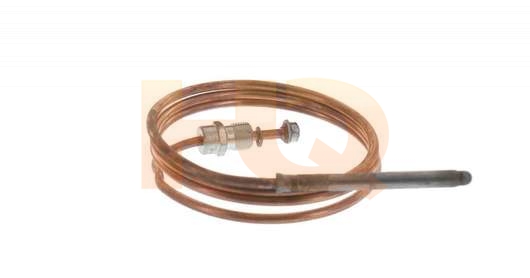

1980-830 : Robertshaw 1980-830 1980 Series Thermocouple, 30"

$24.22

Qty:

Compare at:   $ 26.64
You Save:   $ 2.42

SKU:   1980-830

    SHIPS: IMMEDIATELY

The 1980 Series are T-46 thermocouples which have a threaded nut attached and a tinnerman clip included. The 1980 Series Snap-Fit® thermocouples, also known as 2C thermocouples, offer easy installation into the majority of pilot burners. They are manufactured without complicated adaptors, but with extra insulation that the brass sheath provides under high ambient temperatures.

Features and Benefits:
Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

Specifications:
Lead lengths range from 12 to 72” [305 to 1830 mm]
Open circuit output: 25 and 30 millivolts
Connection Type: Male connector nut

Robertshaw® thermocouples are the industry leader for gas heating and appliances. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermocouples are placed in gas applications to detect existence of a flame for safety purposes by shutting off the potential gas flow to a burner. The Robertshaw thermocouples are made of two different metals with various lengths. A thermocouple 18” [460 mm] long has a lower resistance and higher electrical output compared to a 72” [1830 mm] thermocouple which has a higher resistance
(longer wire) and, therefore, lower electrical output.

Cross Reference:
BEKO BTU-030 Functional
CAMCO 09310 Exact
CAMCO 09313 Exact
CAMCO 923 Exact
CAMCO 923-S Exact
COLUMBUS ELEC/CEMCO UT 30 Functional
GEMLINE GTC-30 Exact
GEMLINE GTC-30 Functional
HONEYWELL Q340A 1082 Functional
HONEYWELL Q340A1082 Functional
ITT/GENERAL CONTROL 3000MG30 Functional
ITT/GENERAL CONTROL 3000MG-30 Functional
JADE RANGE INC. COPR-30 Functional
JOHNSON CONTROLS K15DS-30 Functional
JOHNSON CONTROLS K16BT-30 Functional
JOHNSON CONTROLS K19AT-30 Functional
JOHNSTONE SUPPLY L36-980 Functional
MARS AIR DOORS 72230 Exact
ROBERTSHAW 27426 Exact
ROBERTSHAW 27430 Exact
ROBERTSHAW 44226 Exact
ROBERTSHAW 44230 Exact
ROBERTSHAW 44326 Exact
ROBERTSHAW 44429 Exact
ROBERTSHAW 44430 Exact
ROBERTSHAW 45126 Exact
ROBERTSHAW 45130 Exact
ROBERTSHAW 46126 Exact
ROBERTSHAW 46130 Exact
ROBERTSHAW 47329 Exact
ROBERTSHAW 47330 Exact
ROBERTSHAW 47992 Exact
ROBERTSHAW 47993 Exact
UNI-LINE 1910-930 Exact
UNI-LINE 63190 Exact
UNKNOWN 79-8121 Functional
WESTWARD H06E-30 Functional
WESTWARD H07E-30 Functional
WHITE-RODGERS 21H0E2-30 Functional
