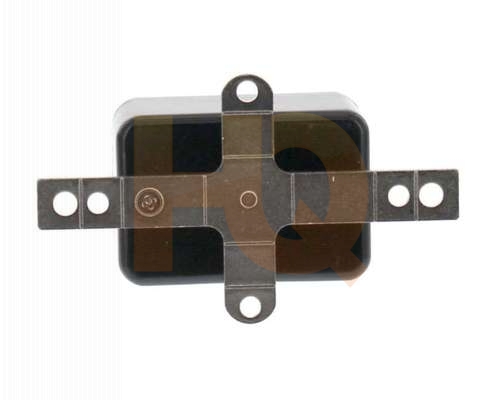

25-90294 : SPDT Standard Duty Enclosed Fan Relay, 120V
Compare at: $ 73.66
You Save: $ 6.70
SHIPS: IMMEDIATELY
General Purpose Fan Relay- Standard Duty.
Application: Designed for switching single or two speed fan motor, relays, solenoids, resistive loads in cooling, heating or general purpose switching applications.
Totally enclosed compact design, Quiet & reliable operations, Universal mounting bracket.
UL & cUR (file E44211)
Replace WR/ Essex/ RBM & Mars type 84 models
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Type: | Enclosed Standard Duty |
| Switching Type: | SPDT |
| Coil Volts: | 120 |
| Coil Frequency: | 50/60 Hz |
| Coil Insulation: | Class A |
| Coil Duty Cycle: | Continuous |
| Full Load Amps @: | 8 |
| Full Loaded Amps: | 8 |
| Locked Rotor Amps: | 18 |
| Inductive Amps: | 8 |
| Resistive Amps: | 16 |
| Temperature Range: | -20°C (-4°F) to 40°C (104°F) |
| Temperature Range (F): | -20°C (-4°F) to 40°C (104°F) |
| Contact Material: | Silver cerium |
| Terminals: | 1⁄4" quick-connects |
| Weight: | 75g (2.65oz.) Approx. |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 777980014814, 786710028069, 90-294Q, B01NAU9LEJ, PS-QYZT-8MRW
