46012 : Packard 46012 EC Direct Drive Blower Motor, 1/2HP, 115/230V, 1075 RPM
Compare at: $ 664.43
You Save: $ 60.40
SHIPS: IMMEDIATELY

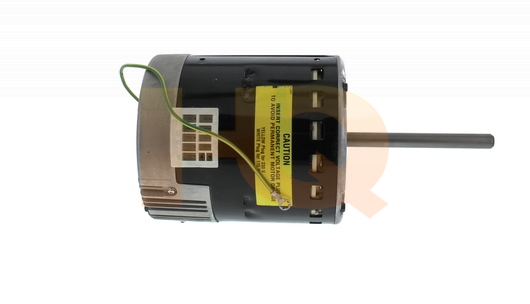

Packard 46012 EC Direct Drive Blower Motor, 1/2HP, 115/230V, 1075 RPM.
High Efficiency ECM: Up to 80% efficient.
Replaces either PSC or X13 model of equivalent HP.
Dual Voltage Design: Replace 115 or 230V with one motor.
45" wiring harness and simple installation guide included.
Rotation Sensing Technology - Automatically selects rotation upon first start up.
Cross References
Century: 6105E, 6205E, EM3587, EM3588
Economaster: EM3587, EM3588
Evergreen: 6005
genteq: 3587, 3588
Mars: 03587, 03588, 06105, 06205, 10587, 10588, 10800, 10860
US Motors: 1865, 1973, 6630TS, 6631RS, 6631TS
Wagner: WG840587, WG840588
Product Downloads
Sales Brochure
| Product Specifications | |
|---|---|
| Amperage: | 6.7/4.0 |
| Bearing: | Ball |
| Body Diameter (Inches): | 5.58 |
| Body Length (Inches): | 6.34 |
| Enclosure: | Open |
| Frame: | 48 |
| Frequency: | 50/60 Hz |
| Rotation: | Reversible |
| HP: | 1/2 |
| Motor Type: | Electronically Commutated |
| Mounting Type: | Belly Band |
| Phase: | 1 |
| Rotation: Opposite Shaft End: | Reversible |
| RPM: | 1,075 |
| Shaft Dimensions (in): | 1/2 x 5 |
| Shaft (in): | 1/2 x 5 |
| Speeds: | 4 |
| Volts (V): | 115/230 |
| Wiring: | Harness |
| Body Length (In): | 6.34 |
| Duty: | Open Air Over |
Replaces Old Numbers: 06105, 06205, 10587, 10588, 10860, 6005, 6105E, 6205E, 6630TS, 6631RS, 6631TS, WG840587, WG840588
