5300-652 : Robertshaw 5300-652 5300-652 Commercial Electric Thermostat 175°F-550°F Bulb Size 1/4" x 7-1/4"

$360.29

Qty:

Compare at:   $ 396.32
You Save:   $ 36.03

SKU:   5300-652

    SHIPS: USUALLY 1 TO 2 WEEKS DELIVERY

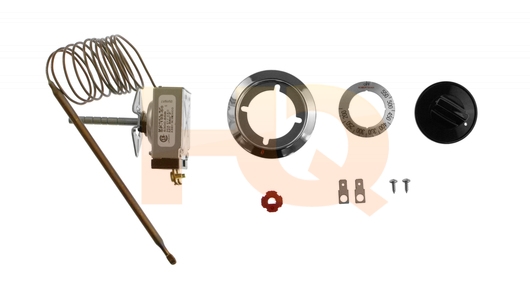

Robertshaw 5300-652 Electric Thermostat
Application commercial cooking industry.
The Robertshaw® 5300 Series Electric Thermostat is a snap-acting, single pole single throw (SPST) type thermostat. Most thermostats use silver contacts and have heavy-duty terminals for durability and sustained accuracy. The snap action mechanism is precise and reliable. This direct acting series of thermostats is
The standard Uni-Kits. feature a 2" break-off shaft, grooved at all the standard stem. lengths. They have a slotted "Uni-Kit" mounting bracket (type #6). to match various mounting dimensions from 1 1/8" to 1 3/4"

Temperature Range 175°F to 550°F (79,4°C to 287,7°C)
Electrical Rating 30 Amps @ 277V AC|20 Amps @ 480V AC|18 FLA, 72 LRA @ 250V AC|125 VA Pilot Duty at 120/277 Volts
Capillary Length 60"
Bulb Size 1/4" x 7-1/4"
Dial Type 4-Way
Mechanical Differential 12°F

Product Downloads
Installation Instructions
