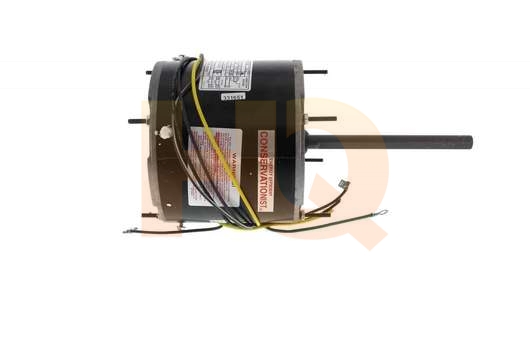

CF-3733 : Rotom 1/3 HP Condenser Fan Motor 5.5" Dia. 1075 RPM, 230V
Compare at: $ 172.80
You Save: $ 15.71
SHIPS:
USUALLY 1 TO 2 WEEKS DELIVERY Rotom CF-3733 Condenser Fan Motor. 5.5" Diameter.
Applications Condensers – Heat Pump – Refrigeration.
Replaces FSE1036S, SV1, FE1036S, SB, WG840729, 1861, 1877, D908, D7908, 3733, 3729, E222, X413, 175, R31703.
24 Month Warranty.
Product Downloads
Product Specifications
Product Specifications
| Product Specifications | |
|---|---|
| Bearing: | Ball |
| Frame: | 48Y |
| HP: | 1/3 |
| Volts: | 208/230 |
| Frequency: | 60Hz |
| Amps: | 2.60 |
| Phase: | 1 |
| RPM: | 1075 |
| Speeds: | 1 |
| Rotation: | Reversible |
| Body Diameter (Inches): | 5.5 |
| Enclosure: | Totally Enclosed |
| Duty: | Air Over |
| Shaft: Diameter x Length (Inches): | 1/2 x 6.0 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 4.50 |
| Capacitor: | 7.5MFD 370V |
| Capacitor Included: | N |
| Thermal Protection: | Y |
| Ambient Temperature (Celsius): | 60 |
| Insulation Class: | B |
| Mounting: | Stud |
| Mounting Position: | All Angle |
| Wiring: | Leads 25.6" |
| Service Factor: | 1.0 |
| Volts (V): | 208/230 |
| Amperage: | 2.60 |
| Shaft Dimensions (in): | 1/2 x 6.0 |
| Ambient Temperature (C): | 60º |
| Mounting Type: | Stud |
| Has 360 Photos: | Yes |
| Clearance: | Yes |
Replaces Old Numbers: 63129, D908, F48SN6L27, FE1036S, FSE1036SV1, GE3729, R22175, Y4631
