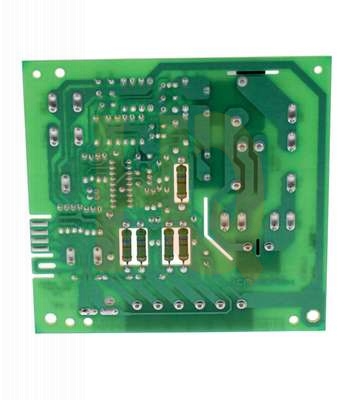

ICM271 : Carrier Fan Blower Control Board, OEM Replacement, CES01100017/18, ICM Controls

$245.92

Qty:

Compare at:   $ 270.51
You Save:   $ 24.59

SKU:   ICM271

    SHIPS: IMMEDIATELY

ICM Controls ICM271 Fan Blower Control Board Replacement for Carrier, Bryant.
Reliable solid state fan blower control. Specifically designed to replace popular gas furnace centres. Pin selectable blower delays.
High power, relay output. Dual function fan delay timer. Controls the circulating fan in heat pump, A/C and forced air systems.
OFF delay purges ducts for residual air.ON delay allows air to reach the proper comfort level prior to energizing the fan
Replaces Carrier 302075-3, CES01100017, CES01100018, HH84AA010, HH84AA011, HH84AA012, HH84AA013, HH84AA020, P771-7002 & Robertshaw: 695-100
Specifications:
Input: Voltage - 18-30 VAC
Contact Ratings:
N.O.: 20 amps
N.C.: 10 amps
Fixed Time Delays:
Heat ON: 75 seconds
Heat OFF: 105 seconds
Cool OFF: 90 seconds
Weight/Dimensions:
Weight: 0.45
Height: 1
Width: 5
Length: 5.25

Product Downloads
Installation Instructions
