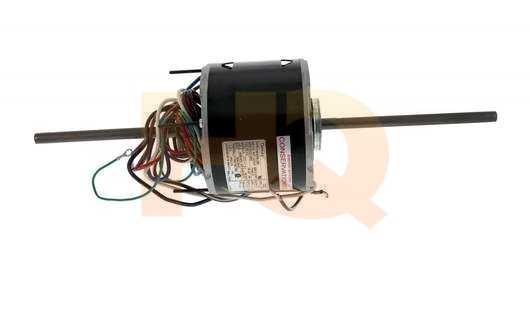

M1-R52114 : Motor 1/4HP Room Air Conditioning 5.5" Dia. 3 Speed 1075RPM 115V Double Shaft
Rotom R52114 Double Shaft Room Air Conditioning Motor.
Applications Large Window AC, Through the Wall AC
Replaces 114, 479, D850,D852
Includes Adjustable Base
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Body Diameter (Inches): | 5.5 |
| Frame: | 48 |
| HP: | 1/4 |
| Volts: | 115 |
| Amps: | 3.4 |
| RPM: | 1075 |
| Speeds: | 3 |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Shaft: Diameter x Length (Inches): | 1/2 x 7.76 & 1/2 x 8.0 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 4.24 |
| Capacitor: | 5MFD 370V |
| Capacitor Included: | N |
| Thermal Protection: | Automatic |
| Mounting: | Resilient Ring Through Bolts |
| Wiring: | Leads |
| Volts (V): | 115 |
| Amperage: | 3.4 |
| Shaft Dimensions (in): | 1/2 x 7.76 & 1/2 x 8.0 |
| Mounting Type: | Resilient Ring Through Bolts |
| Has 360 Photos: | Yes |
| Clearance: | Yes |
Replaces Old Numbers: 3571, 3671, 63671, 663001002451, 70117, 7126-0194, D756, F48SG6MA13, F-782, R52114, RAL1026, S196-059-06, S3671, SRL1026, UE114, X061, X066
