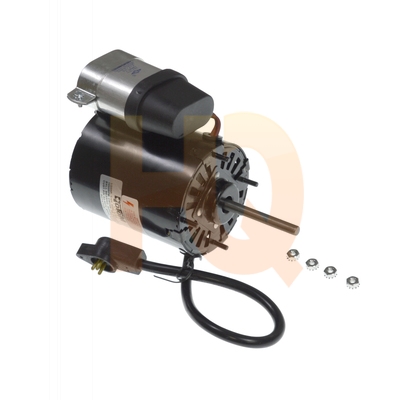

R3-R370 : Rotom 1/20HP Refrigeration Evaporator Coil Motor, 3.3" Dia. 1550RPM, 115V, Keeprite, ICP
Compare at: $ 202.32
You Save: $ 18.39
SHIPS:
USUALLY 1 TO 2 WEEKS DELIVERY Rotom R3-R370 OEM Evaporator Coil Motor.
Applications Evaporator Coils, Coolers, Refrigeration Cases, Etc.
Use with Keeprite, ICP and other Units needing these specifications.
Replaces 505124, 501895, 501899,501898, 7164-1243
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Body Diameter (Inches): | 3.3 |
| Frame: | 3.3 |
| HP: | 1/20 |
| Volts: | 115 |
| Amps: | 0.75 |
| RPM: | 1,550 |
| Speeds: | 1 |
| Rotation: Opposite Shaft End: | CW |
| Bearing: | Ball |
| Rotation Double Shaft: Lead End: | CW |
| Enclosure: | Open |
| Shaft: Diameter x Length (Inches): | 5/16 x 2.7 |
| Motor Type: | Permanent Split Capacitor |
| Capacitor: | 4MFD 370V |
| Capacitor Included: | Y |
| Body Length (Inches): | 3.98 |
| Mounting: | Stud |
| Wiring: | Cord W/ Plug |
| Volts (V): | 115 |
| Amperage: | 0.75 |
| Shaft Dimensions (in): | 5/16 x 2.7 |
| Mounting Type: | Stud |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 501899, 505124, 71641243, 7164-1243, 71641815, 8274010130, AE2G5433, D1243, R370, SS370
