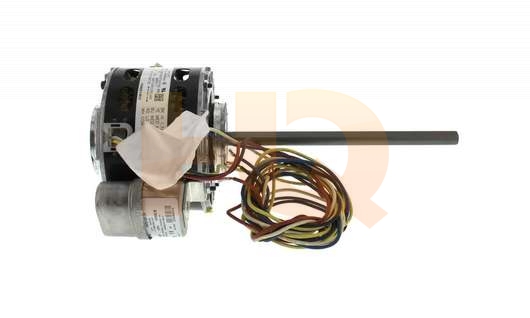

UE-669 : A.O. Smith 1/10-1/35 HP Direct Drive Fan & Blower Motor 5.0" Dia. 1075 RPM, 115V
Compare at: $ 464.65
You Save: $ 42.24
SHIPS: IMMEDIATELY
A.O. Smith 669 Fan, Blower Motor. 5.0" Diameter.
Applications Furnace Blowers, Air Handlers, Fan Coils, Air Conditioning
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Shaft Dimensions (in): | 1/2 x 8.5 |
| Body Diameter (Inches): | 5.0 |
| Frame: | 42 |
| HP: | 1/10-1/15-1/25-1/35 |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amps: | 1.70-1.30-0.85-0.62 |
| Phase: | 1 |
| RPM: | 1,075 |
| Speeds: | 4 |
| Rotation: | CW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Duty: | Continuous Air Over |
| Shaft: Diameter x Length (Inches): | 1/2 x 8.5 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 3.5 |
| Capacitor Included: | Y |
| Thermal Protection: | Automatic |
| Service Factor: | 1.00 |
| Mounting: | Resilient. Rings Included |
| Wiring: | Leads |
| Mounting Type: | Resilient. Rings Included |
| Volts (V): | 115 |
| Amperage: | 1.70-1.30-0.85-0.62 |
| Shaft (in): | 1/2 x 8.5 |
| Body Length (In): | 3.5 |
| Clearance: | Yes |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 5KCP29DK941AS, 669, 669AOS, 700215-23, A0669, AO669, D290, DB3D025, DE3E174N, S88-660, UE669
