UE-799 : A.O. Smith 1/8-1/30 HP Direct Drive Fancoil & Blower Motor 5.0" Dia. 1000 RPM, 115V
$314.53
Compare at: $ 345.98
You Save: $ 31.45
SKU: UE-799
SHIPS: IMMEDIATELY

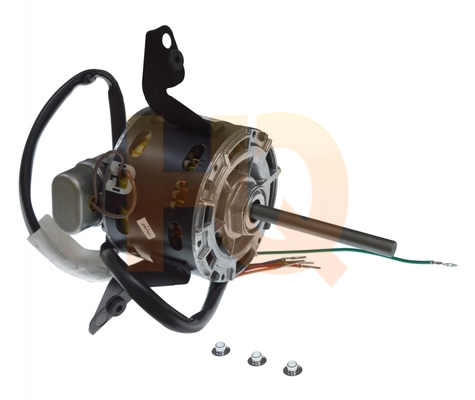

A.O. Smith 799 ( UE-799 ) Fancoil Blower Motor
Replaces Unilux
Replaces L350, L450, L600 UE DA3E200 DA3F100, DA3G142
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Duty: | Continuous Air Over |
| Frame: | 42 |
| HP: | 1/8, 1/10, 1/15, 1/20, 1/30 |
| Volts: | 115 |
| Frequency: | 60Hz |
| Amps: | 2.6, 2.1, 1.8, 1.0, 0.7 |
| Phase: | 1 |
| RPM: | 1,000 |
| Speeds: | 5 |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Sleeve |
| Enclosure: | Open |
| Body Diameter (Inches): | 5.0 |
| Shaft: Diameter x Length (Inches): | 1/2 x 5.0 |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 3.75 |
| Capacitor: | 5MFD 370V |
| Capacitor Included: | Y |
| Thermal Protection: | Automatic |
| Ambient Temperature (Celsius): | 40 |
| Insulation Class: | B |
| Service Factor: | 1.00 |
| Mounting: | Tri-Mount |
| Weight Lbs.: | 9.4 |
| Volts (V): | 115 |
| Amperage: | 2.6, 2.1, 1.8, 1.0, 0.7 |
| Shaft Dimensions (in): | 1/2 x 5.0 |
| Ambient Temperature (C): | 40 |
| Mounting Type: | Tri-Mount |
| Weight (lbs): | 9.4 |
| Rotation: | CCW |
| Shaft (in): | 1/2 x 5.0 |
| Body Length (In): | 3.75 |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 799, DA3E200, DA3G142, HVA810, L450, L600, UE799
