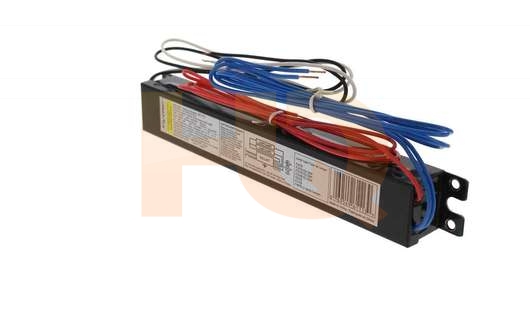

E232PI120G01 : Standard Lighting Electronic Linear Fluorescent Ballast, 120V
Compare at: $ 48.39
You Save: $ 4.40
SHIPS: IMMEDIATELY
Standard Electronic Linear Fluorescent Ballast. E232T8IS120/N/AS
Operates:
2 25W F32T8/ES
1 28W F32T8/ES
2 28W F32T8/ES
1 32W F32T8
2 32W F32T8
1 32W F32T8/ES
2 32W F32T8/ES
1 40W F40T8
2 17W F17T8
2 25W F25T8
1 25W F32T8/ES
Instant start ballasts are designed to ignite the lamp by providing a high voltage without the need of preheating the filaments. As a result, instant start ballasts are more energy efficient than other ballasts. They provide a reduction of two watts per lamp compared to rapid start ballasts. Offering longer remote wiring distances and easy installation, instant start ballasts are ideal for applications that have long burn hours and minimal on/off switching. Typically, 10 000 to 15 000 switch cycles can be expected before lamp failure.
A ballast is an integral component of most modern lighting systems. It is primarily designed to perform three critical tasks: Deliver the proper voltage to start or ignite the lamp(s), Regulate the electric current flowing through the lamp(s), and Compensate for variations in line voltage. The ballast must correspond exactly to the requirements of the lamp it is designed to operate in order to ensure optimal performance.
Product Downloads
Product Specifications
Product Specifications
| Product Specifications | |
|---|---|
| Case Quantity: | 1 |
| Ballast Type: | Electronic |
| Starting Method: | Instant Start |
| Lamp Connection: | Parallel |
| Input Voltage: | 120 |
| Input Frequency: | 60 |
| Status: | Active |
| Operates: | 2 25W F32T8/ES |
| Width (in): | 1-5/16 |
| Width (mm): | 33.0 |
| Length (in): | 9-1/2 |
| Length (mm): | 241.0 |
| Height (in): | 1 |
| Height (mm): | 25.0 |
| Mounting (in): | 8-29/32 |
| Mounting (mm): | 226.0 |
| Maximum Case Temperature (°C): | 75 |
| Minimum Starting Temperature (°C): | -18 |
| Minimum Starting Temperature (°F): | |
| Brand: | Standard |
| Order Code: | 61113 |
| Maximum Case Temperature (°C): | 75 |
| Minimum Starting Temperature (°C): | -30 |
| Minimum Starting Temperature (°F): | -22 |
| Operating Burn Position: | 1 28W F32T8/ES |
| Operating Temperature: | 2 28W F32T8/ES |
| Operation Type: | 1 32W F32T8 |
| Outside Height (in): | 1 32W F32T8/ES |
| Outside Height (mm): | 2 32W F32T8/ES |
| Outside Length (in): | 1 40W F40T8 |
| Outside Length (mm): | 2 17W F17T8 |
| Outside Width (in): | 2 25W F25T8 |
| Outside Width (mm): | 1 25W F32T8/ES |
| Pattern: | 61113 |
| Type: | Active |
| Trim Colour: | Active Instant Start |
| UL or ETL Listed: | Active |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 10292, 10292STD, 1152, 314046, 49853, 61113, 69549102927, 69549315501, 69549611139, E232I120, E232T120, E232T8IS120/N/BULK, R232-120-CP, R-2P32-TP, SSB21202321S, SSB2120232IS
