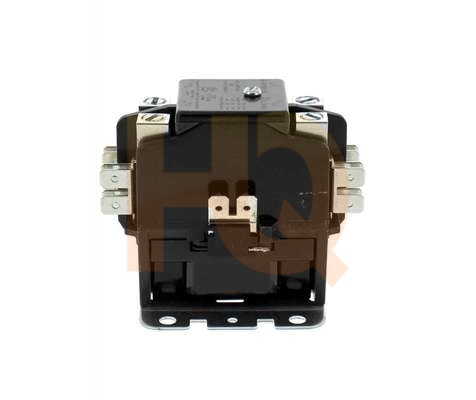

DP-2P30A120 : Definite Purpose Magnetic Contactor, 2 Pole 30A 120V
Compare at: $ 47.21
You Save: $ 4.29
SHIPS: IMMEDIATELY
Alltemp DP-2P30A120 Definite Purpose Magnetic Contactor. 30 Amp, 120 Vac, 2 Poles. Termination Screw Type 50/60 Hz.
Furnas #45EG20AF
Contactors are designed to establish or interrupt a power circuit. Definite purpose contactors unlike general purpose contactors are non-rebuildable electronic controls designed for specific applications with clearly defined operating conditions.
Features lug, spade terminals, and protective covers
Compact size
Universal galvanized mounting plates
ARI 780/790 standards
Brass/copper terminals
Quick connect and screw terminals on coil
cURus approved
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Poles: | 2 |
| Full Loaded Amps: | 30 |
| Coil Voltage 50/60: | 120 |
| Locked Rotor Amps (240V): | 180 |
| Locked Rotor Amps (480V): | 150 |
| Locked Rotor Amps (600V): | 120 |
| Resistive Amps: | 40 |
| Termination: | Screw Type |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 037H500121, 14322, 2S30-B, 340274, 341040, 45EG20AF, 60031, 777980033822, 777980044613, 90-245, C2S30B, CS230B, DP030-2B0, H230B, HC-230120
