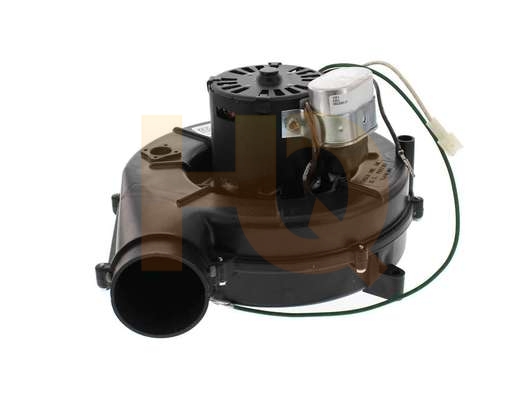

FA-A130 : Blower Draft Inducer, Flue Exhaust 1/25HP 3450RPM 115V Clare, Consolidated, Olsen, Trane
Compare at: $ 573.66
You Save: $ 52.15
SHIPS:
USUALLY 1 TO 2 WEEKS DELIVERY Fasco A130 Flue Exhaust Blower Assembly Replacement.
Use with Clare, Consolidated, Olsen, Trane and others requiring these specifications.
Works with these Hi Efficiency Models Consolidated, Clare & Olsen NUP N12, 16, 20, 90-3, 108-5, 126-5, CHU 90-3, 108-5, 126-5, Trane TUCG 60, 80, 100
Replaces 4246101, BW000517, UE9457, 7062-9064, RFB130, RFB130, FB-RFB130
Includes Motor, Housing & Blower Wheel
Product Downloads
Product Specifications
| Product Specifications | |
|---|---|
| Volts (V): | 115 |
| Amperage: | 0.70 |
| Mounting Type: | Housing Flange |
| Body Diameter (Inches): | 3.3 |
| Frame: | 3.3 |
| HP: | 1/25 |
| Volts: | 115 |
| Amps: | 0.70 |
| RPM: | 3450 |
| Speeds: | 1 |
| Rotation: Opposite Shaft End: | CCW |
| Bearing: | Ball |
| Enclosure: | Open |
| Motor Type: | Permanent Split Capacitor |
| Body Length (Inches): | 5.0 |
| Capacitor: | 4MFD 370V |
| Capacitor Included: | N |
| Mounting: | Housing Flange |
| Wiring: | Leads |
| Has 360 Photos: | Yes |
Replaces Old Numbers: 108-5, 126-5, 1708607, 1708607P, 4246101, 7021-3956, 7021-4004, 7062-3616, 7062-3956, 7062-4159, 7062-4637, 7062-4639, 7062-9064, 903962, 9457, A130, BLW000517, BW000517, CHU90-3, FB-RFB130, RFB130, UE9457, X3141
