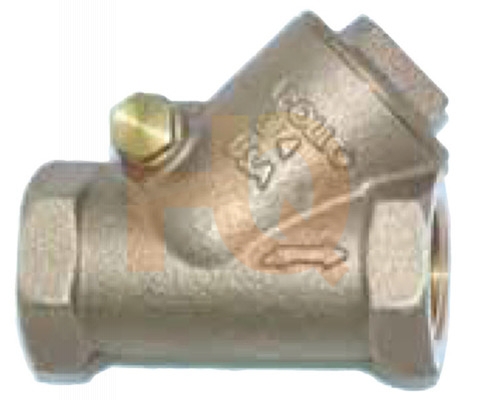

61Y-198-01 : Conbraco Swing Check Valve 2" NPT

The Apollo Model 161S (61Y Series) Swing Check provides a cost effective check valves. The Apollo Swing Check can be installed in either horizontal or vertical line with * upward flow.
For Backflow Prevention or Water Regulating
Renewable Bronze Seat Disc
Dezincification Resistant
100% Factory tested per MSS
Solder Connection
100% Cast, Machined and Assembled in the US
ARRA Compliant

Performance Rating
Saturated Steam: 125 psi (8.6 Bar) to 353°F(178°C)
Cold Working Pressure: 200 psi (13.8 Bar) at 100°F
Temperature Range: -20°F to 406°F

Standards:
MSS SP-80, "Bronze Gate, Globe & Check Valves"
ASME B16.18, "Cast Copper Alloy Solder Joint Pressure Fittings
MSS SP-104, "Wrought copper solder joint pressure fittings"
Canadian Registration Number 0C14667.5
